LXM32SD18N4 Schneider motion servo drive, Lexium 32, 6A, three phase

Schneider LXM32SD18N4 motion servo drive, Lexium 32, 6A, three phase :

The LXM32SD18N4 is a three-phase motion servo drive from Schneider Electric’s Lexium 32 series, designed for high-precision industrial automation applications. It operates with a rated power of 0.7 kW (at 230 V, 8 kHz) and supports a voltage range of 200–240 V (±15%) or 380–480 V (±15%), making it adaptable to global power standards. The drive features an integrated EMC filter, reducing electromagnetic interference, and supports switching frequencies up to 8 kHz for smooth motor control. Its compact "book-style" design (dimensions: 68 mm × 237 mm × 270 mm) facilitates space-efficient installation in control cabinets.

Technical Specifications:

Power & Voltage:

Rated power: 0.7 kW (230 V, 8 kHz); 1.2 kW (230 V); 1.8 kW (400 V).

Continuous output current: 3 A (8 kHz); peak current: 12 A (3s).

Voltage limits: 170–264 V (low range); 323–528 V (high range).

Performance:

Speed response frequency: 10 Hz (optimized for dynamic applications).

Supports motor speeds up to 8,000 rpm (depending on motor type).

Electrical & Environmental:

Supply frequency: 50/60 Hz ±5%; network frequency: 47.5–63 Hz.

Operating temperature: 0–50°C; storage temperature: -25–70°C.

Humidity tolerance: -20–50% (non-condensing).

Connectivity & Safety:

Single-strand IEC cable connection (3 mm²/AWG 12).

Electrical isolation between power and control circuits.

Overvoltage category III; leakage current: 30 mA.

Certifications & Compliance:

Certified with CCC (China Compulsory Certificate) and Green Premium (Schneider’s eco-design standard).

Complies with EMC standards (integrated filter reduces external component needs).

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.

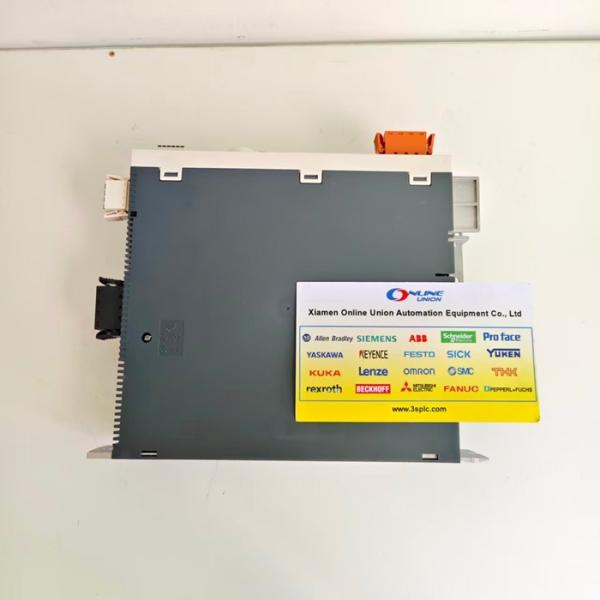

LXM32SD18N4 Schneider motion servo drive, Lexium 32, 6A, three phase Images
