TM2DRA8RT Schneider I/O Expansion Module, Modicon M238 Logic Controller

Schneider TM2DRA8RT I/O Expansion Module, Modicon M238 Logic Controller :

The TM2DRA8RT is a digital relay output expansion module from Schneider Electric, designed for the Modicon M238 logic controller family. It provides 8 normally open (NO) relay outputs, enabling control of high-voltage or high-current devices in industrial automation systems. The module supports both AC (230V) and DC (30V) relay voltages, with a nominal operating voltage of 24V DC. Its compact design (27.3mm width × 90mm height × 84.6mm depth) and 35mm DIN rail mounting make it suitable for space-constrained control cabinets. The removable screw terminal block simplifies wiring, while built-in isolation (2300V AC rms between channels and internal logic) enhances electrical safety.

Technical Specifications:

Output Type: 8 NO relay contacts

Relay Voltage:

AC: 230V (resistive load)

DC: 30V (inductive/resistive load)

Output Current:

Per channel: 2A (AC/DC)

Per common group: 7A

Response Time:

Off-On/On-Off: ≤4ms

State transition (0→1/1→0): ≤10ms (0→1), ≤5ms (1→0)

Isolation:

Between channels: 1500V AC rms for 1 minute

Between channels and logic: 2300V AC rms for 1 minute

Mechanical Durability: 20,000,000 cycles

Electrical Durability:

AC-15 (240V AC, 0.5A inductive): 100,000 cycles

AC-15 (240V AC, 1A inductive): 100,000 cycles

DC-13 (24V DC, 1A inductive): 100,000 cycles

Resistive loads (240V AC/30V DC, 2A): 100,000 cycles

Power Consumption:

30mA (5V DC) / 40mA (24V DC) at state 1 (all outputs active)

Environmental:

Operating temperature: 0–50°C

Storage temperature: -25–70°C

Humidity: 5–95% (non-condensing)

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.

Schneider I/O expansion module

Modicon M238 logic controller

Schneider Module with warranty

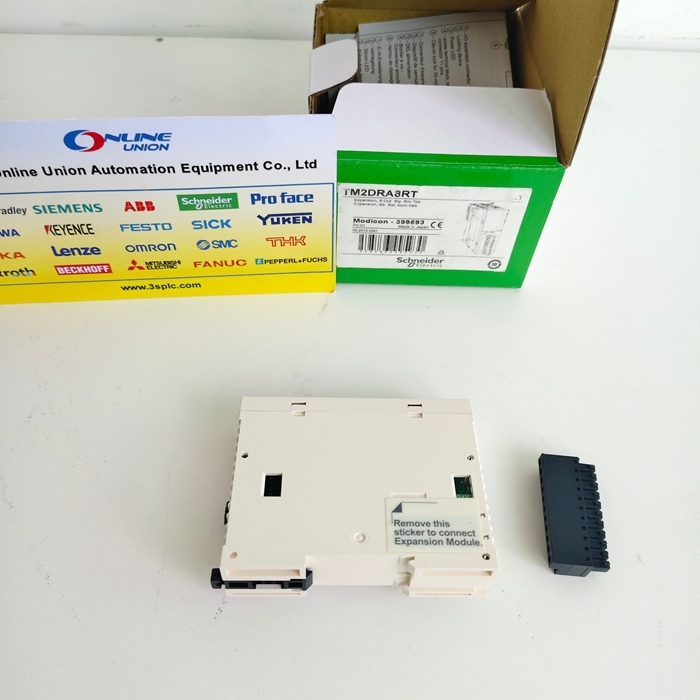

TM2DRA8RT Schneider I/O Expansion Module, Modicon M238 Logic Controller Images
